River Sand Cutter Suction Dredger Gold Mining Machine 4000 M3/H

Brand Name : KeDa

Place of Origin : shandong china

MOQ : 1

Price : $110,000/sets >=1 sets

Payment Terms : T/T,L/C

Delivery Time : 30

Certification : CE 9001

Model Number : CSD150；CSD200;CSD250;CSD300;CSD400;CSD450

Video outgoing-inspection : Provided

Machinery Test Report : Not Available

Core Components : Engine, Gearbox, Pump

Type : Cutter Suction Dredger

Power Type : Diesel

Dredging Depth : 12 m

Draught : 0.85m-15m

Dimension(L*W*H) : 34.5*7*2M

Weight : 110000 KG

Warranty : 1 Year

Product name : 20 inch Cutter Suction Dredger

Work site : River Lake Port Coastal Area

Water flow : 5000 M3/h

Discharge distance : as per customer's request

Diameter discharge pipe : 20 inch/640mm

Diameter suction pipe : 22inch/700mm

After-sales Service Provided : Engineers available to service machinery overseas, Online Support

Applicable Industries : Construction works , Energy & Mining

Showroom Location : None

Marketing Type : Ordinary Product

Warranty of core components : 1 Year

Condition : New

Hull Material : Steel

Width : 4-15m

Colour : customized

Contact Now

KEDA Factory Price Middle Cutter Suction Dredger
Gold Diamond Mining Fully Hydraulic Cutter Suction Dredger
Diesel-Powered Sand Dredging Boat Equipment Machine
Product Overview

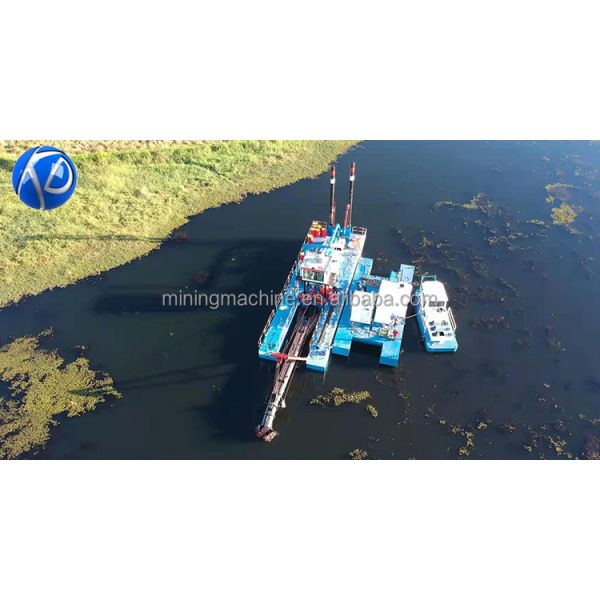

KEDA 20 inch Cutter Suction Dredger - CSD500 is a stationary dismountable vessel equipped with a rotating cutter head designed for dredging rock, clay, silt and sand.
River Sand Cutter Suction Dredger Gold Mining Machine 4000 M3/H River Sand Cutter Suction Dredger Gold Mining Machine 4000 M3/H River Sand Cutter Suction Dredger Gold Mining Machine 4000 M3/H
Technical Specifications
ITEM DATA
Model CD-CSD500
Workload 5000m3/h
Dredging Depth 16 m Max
Loa(L*W*H) 38*8.5*2.5m
Suction Diametre 700mm
Discharge Diametre 640mm
Cutter Power 300kw
Main Engine Cummins/Weituo
Discharge distance 2500m
Lift 62m
Our cutter suction dredger can accept customized, non-standard products. If the following parameters cannot meet your needs, please contact us to obtain your exclusive customized solution.
Model Comparison
MODEL Workload Dredging Depth Lift Suction Diametre Discharge Diametre Discharge distance
csd150 450m3/h 5m 36m 250mm 200mm 2500m
csd200 750m3/h 6m 49m 300mm 260mm 2000m
csd250 1100m3/h 10m 56m 350mm 300mm 2000m
csd300 2200m3/h 12m 57m 530mm 450mm 1500m
csd350 3000m3/h 12m 58m 540mm 510mm 1100m
csd450 4000m3/h 15m 55m 630mm 560mm 700m
csd500 5000m3/h 16m 62m 700mm 640mm 500m
Key Components
1. Dredger Hull
  • Material: Ship steel plate
  • Structure: Can be dismantled and assembled at working site
  • Hull quantity: Two side hulls and one main hull
River Sand Cutter Suction Dredger Gold Mining Machine 4000 M3/H
2. Power System
  • Name: Diesel Engine
  • Brand: World famous CUMMINS brand or Weichai brand as required
  • Power: 60-2000Kw
  • Function: Supply power to the dredger
River Sand Cutter Suction Dredger Gold Mining Machine 4000 M3/H
3. Marine Gear Box
Semi-automatic system suitable for optimal dredging operations.
River Sand Cutter Suction Dredger Gold Mining Machine 4000 M3/H
4. Sand Pump
  • Pump Flow: 100-5000m3/h
  • Sand output: 40-1500m3/h
  • Material: High chromium alloy super wearing-resistant
  • Discharge Distance: 100-2000m
  • Pump Sealing: Packing seal
River Sand Cutter Suction Dredger Gold Mining Machine 4000 M3/H
5. Hydraulic System
  • Cutter head hydraulic system
  • Spud hydraulic system
  • Winch hydraulic system
  • Hydraulic pump
  • Hydraulic oil tank and pipes
River Sand Cutter Suction Dredger Gold Mining Machine 4000 M3/H
6. Cutter Head
  • Drive type: Hydraulic drive
  • Teeth type: Replaceable alloy teeth
  • Cutter blade material: 16Mn
  • Cutter teeth quantity: Multi teeth
Why Choose Us
Qingzhou KEDA Environment Protection Machinery Co., Ltd
  • More than 10+ years of production experience in dredgers and mineral processing equipment
  • Strong technical service team, can provide customized services
  • Own design team with 21 patents
  • Industry and Trade Integration Enterprise
  • The factory covers an area of over 22,000 square meters
  • 3 production lines - dredger, cleaning boat, gold mining equipment
River Sand Cutter Suction Dredger Gold Mining Machine 4000 M3/H River Sand Cutter Suction Dredger Gold Mining Machine 4000 M3/H

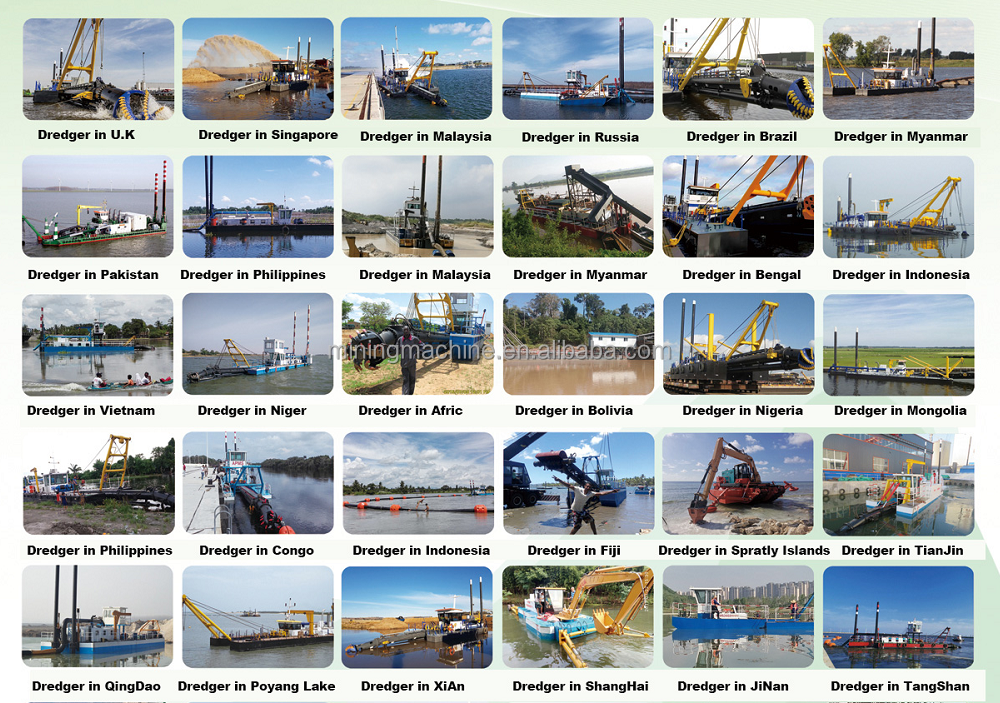

Our Cases
River Sand Cutter Suction Dredger Gold Mining Machine 4000 M3/H
